Engineers
Simplicity & Flexibility | retain-it Stormwater Management System modules are intentionally both simple and flexible. All modules have an 8 x 8 footprint, with interior height options ranging from 1 through 5 feet. Where site conditions permit, modules can be stacked easily to increase vertical interior storage up to 10.67 feet. Modules exceed HS-20 loading requirements and can be installed with minimal cover. Virtually any control or feature imaginable can be designed into the interior of each module – one uniform box with endless design possibilities.

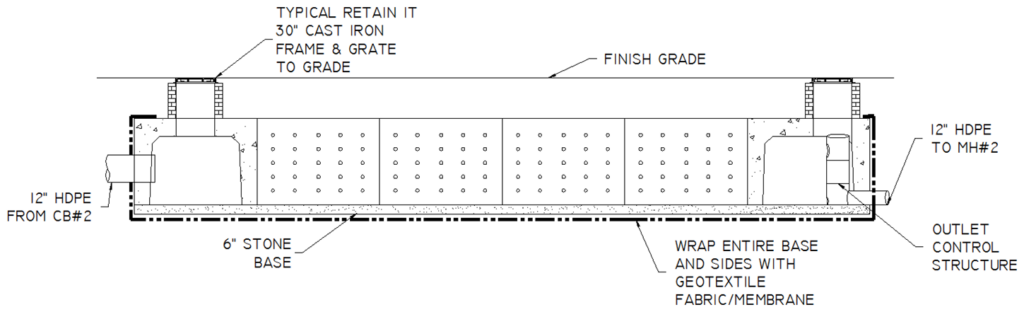

Typical retain-it SMS Detention System
(click image to enlarge)
Typical retain-it SMS Infiltration System
(click image to enlarge)
Storage-Plus | With retain-it you can easily design your own storage-plus stormwater system. Add any combination of weirs, baffles or walls to any module. Design in traditionally external functions and/or isolate modules within the system to perform pretreatment functions. Here are a few examples of treatment mini-systems you can incorporate into your design…

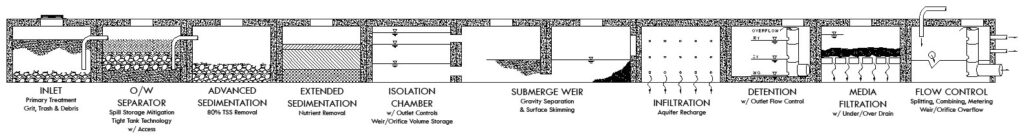

Treatment Train Technologies
(click image to enlarge)
